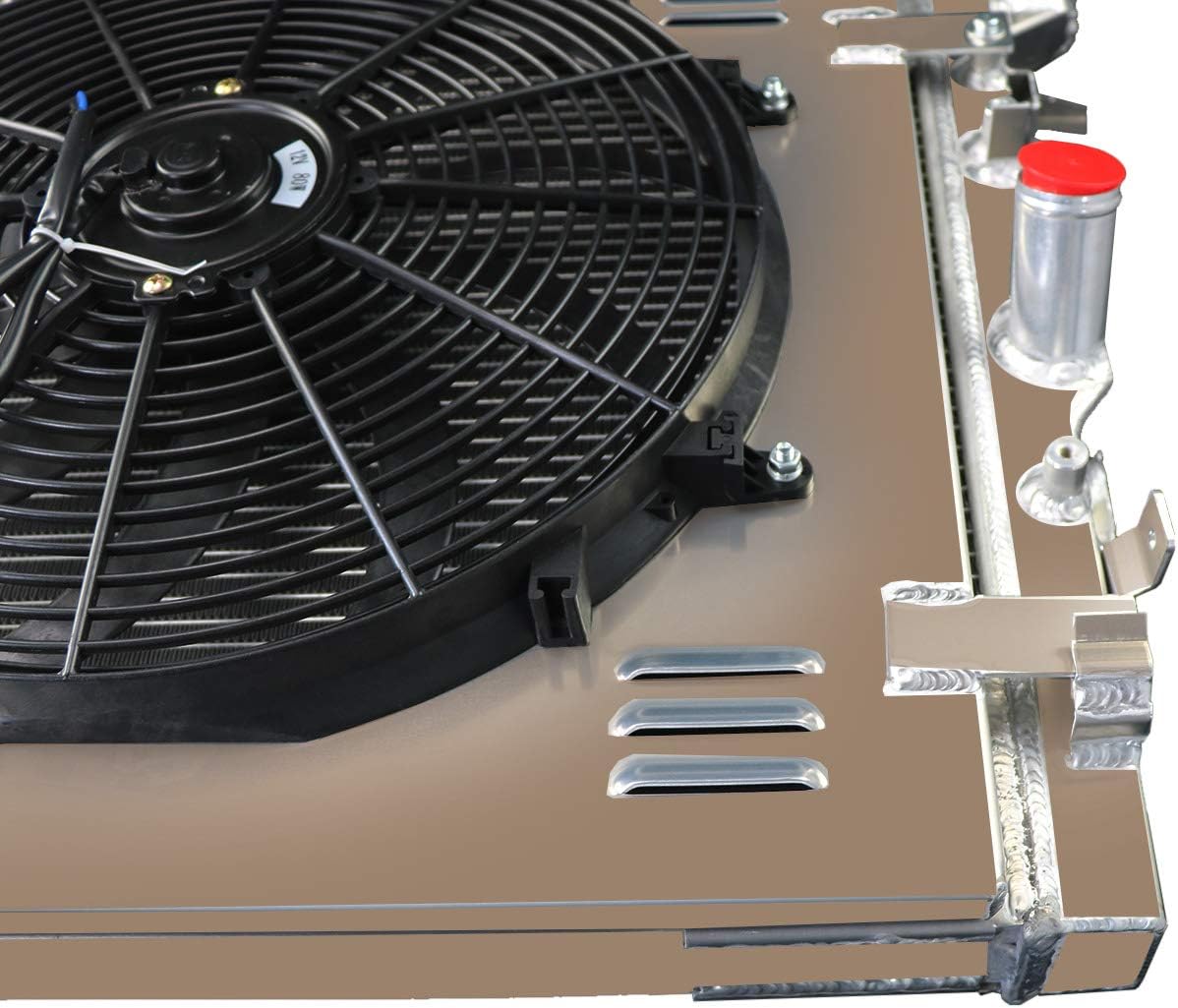

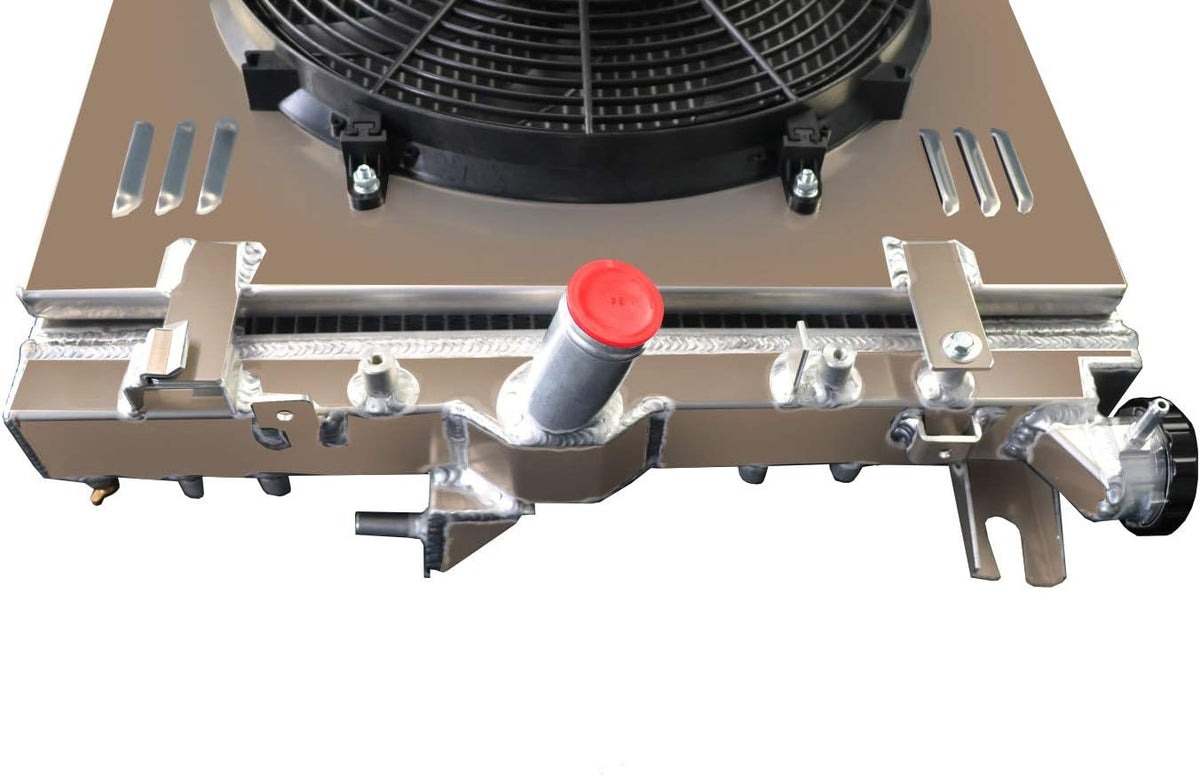

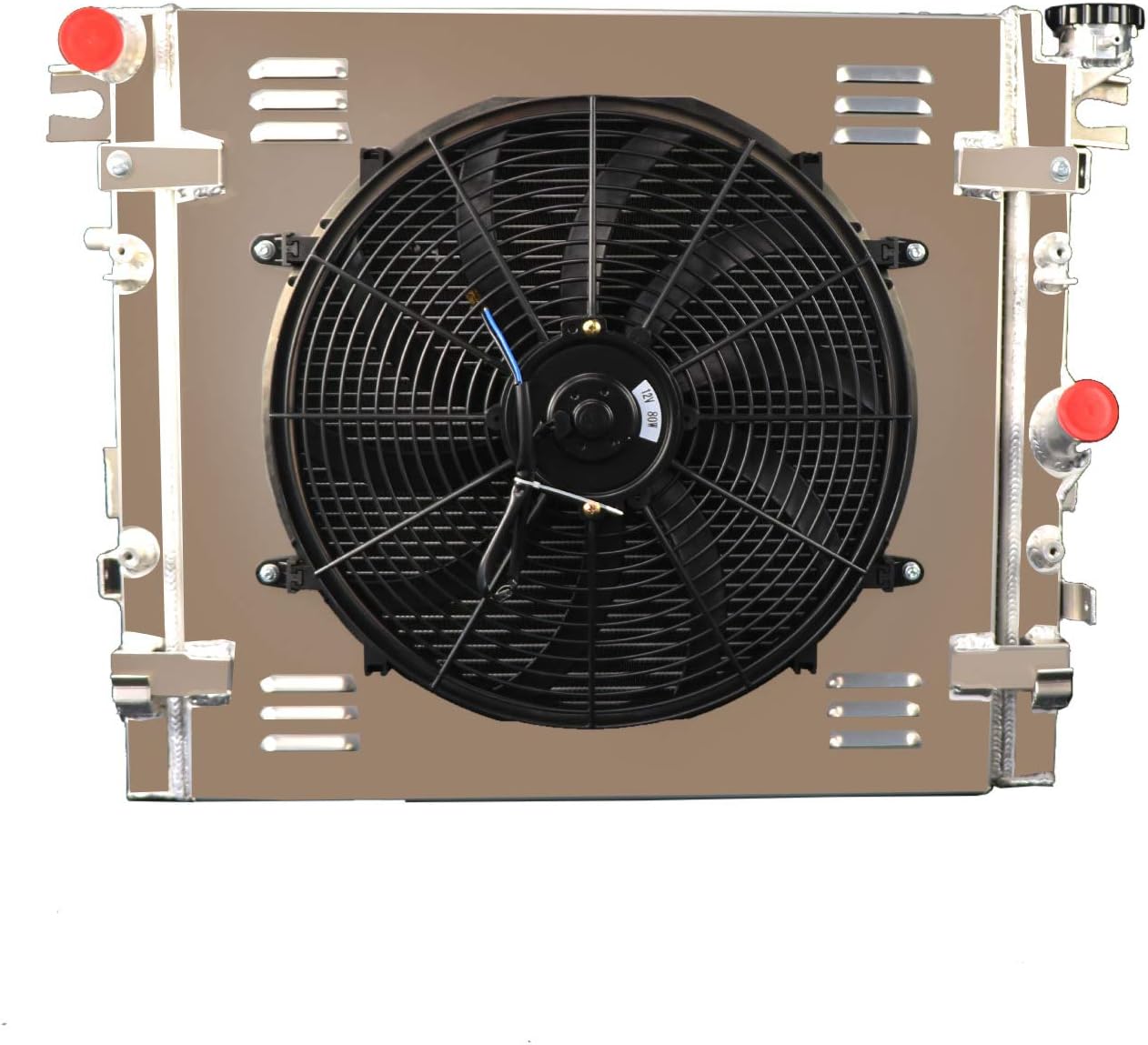

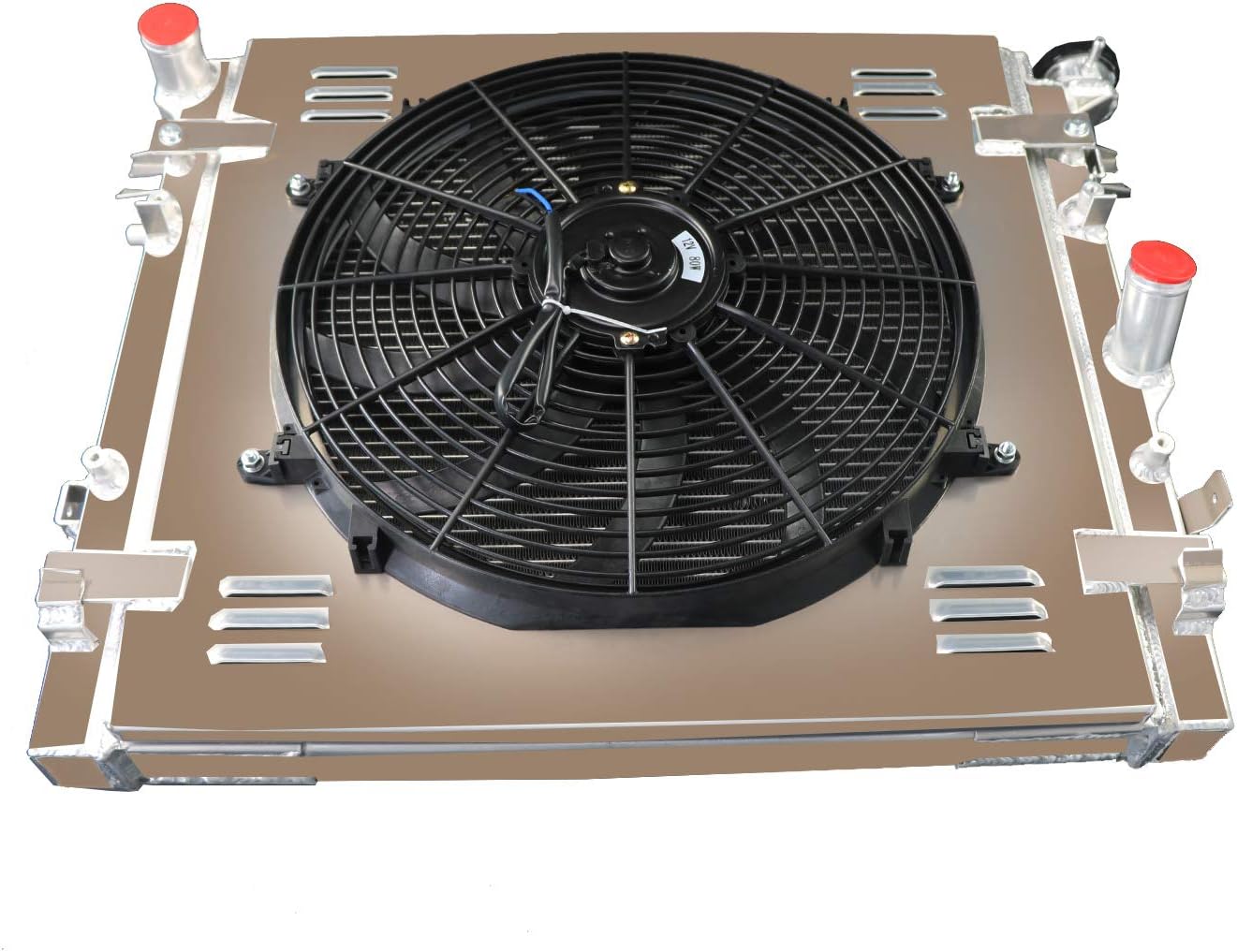

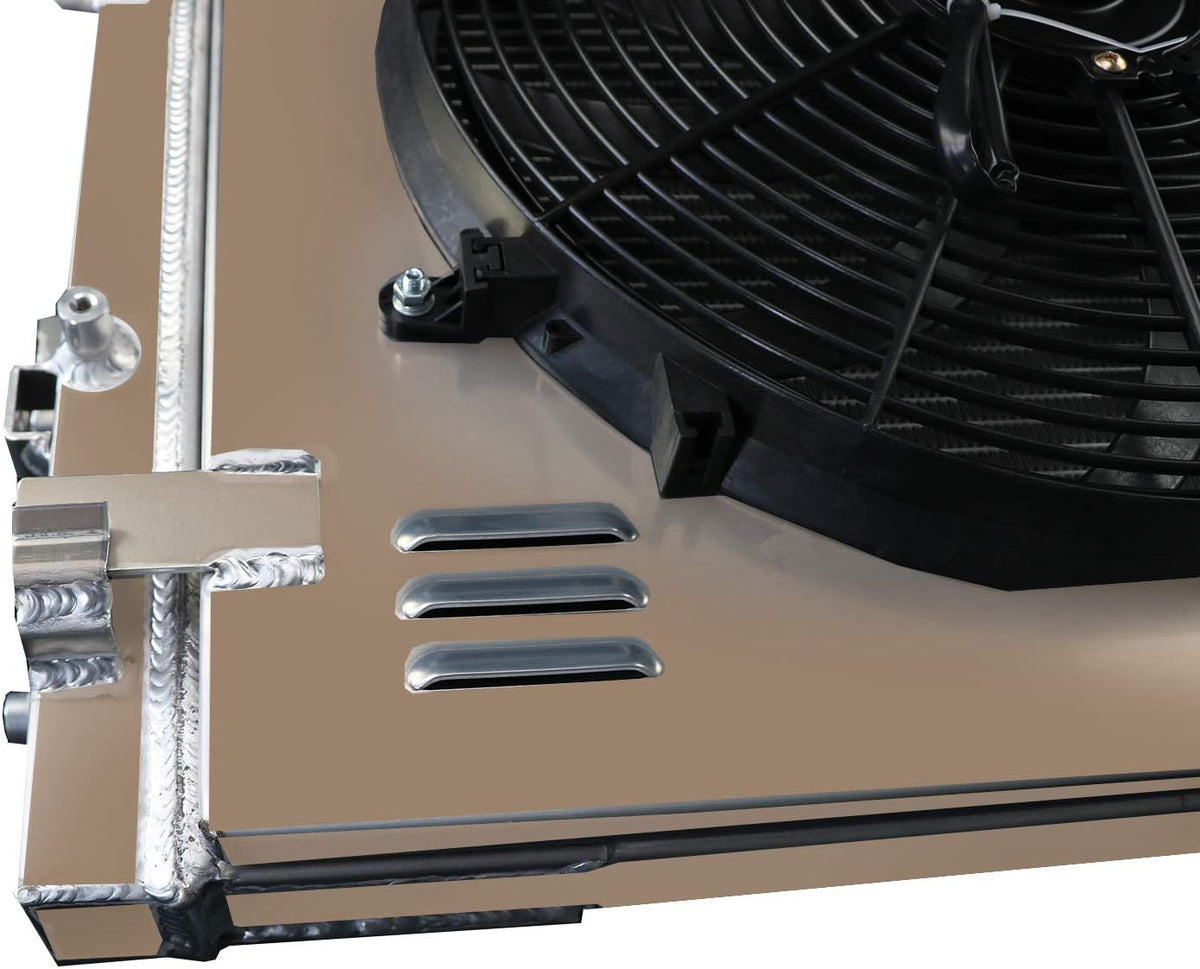

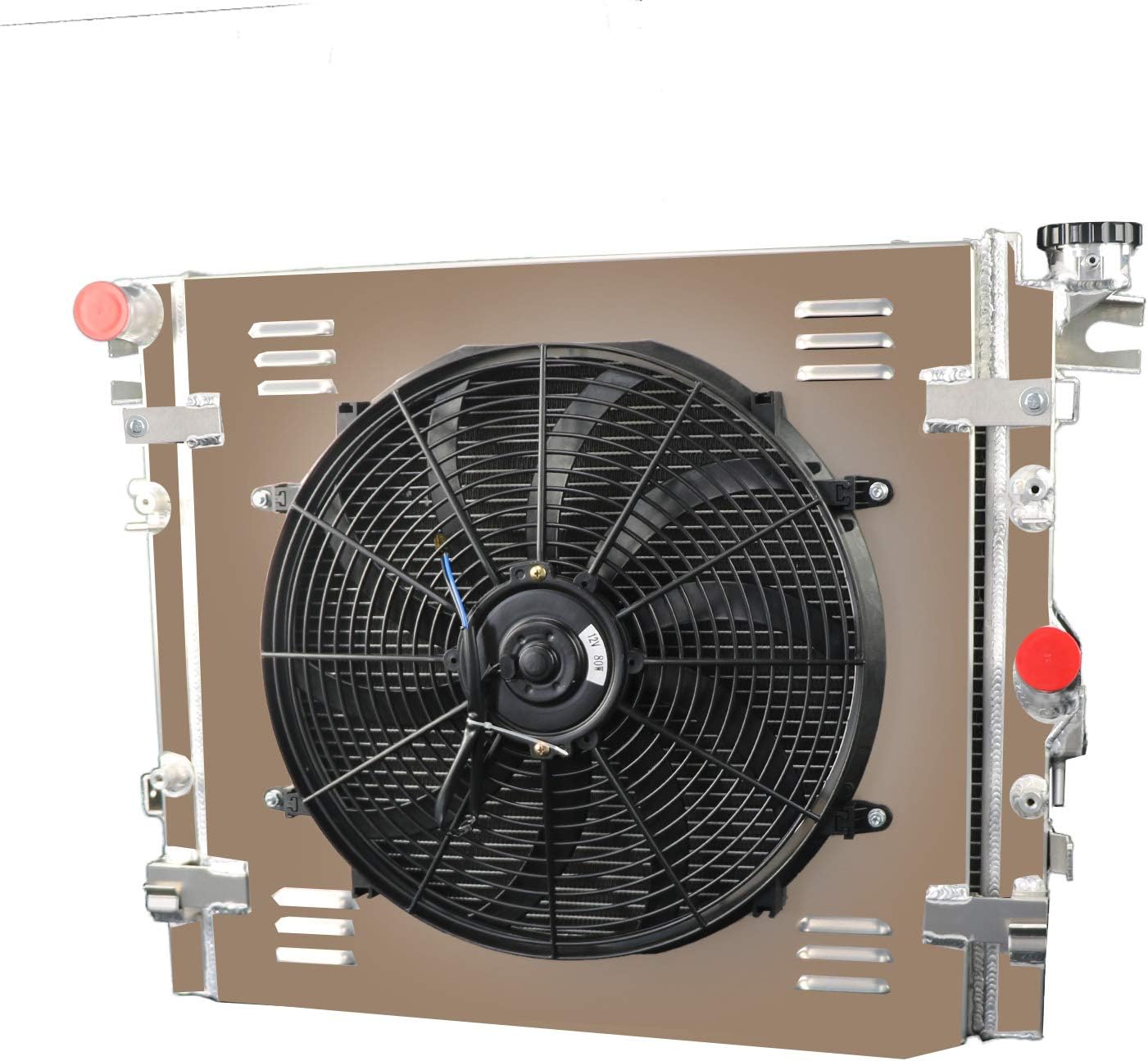

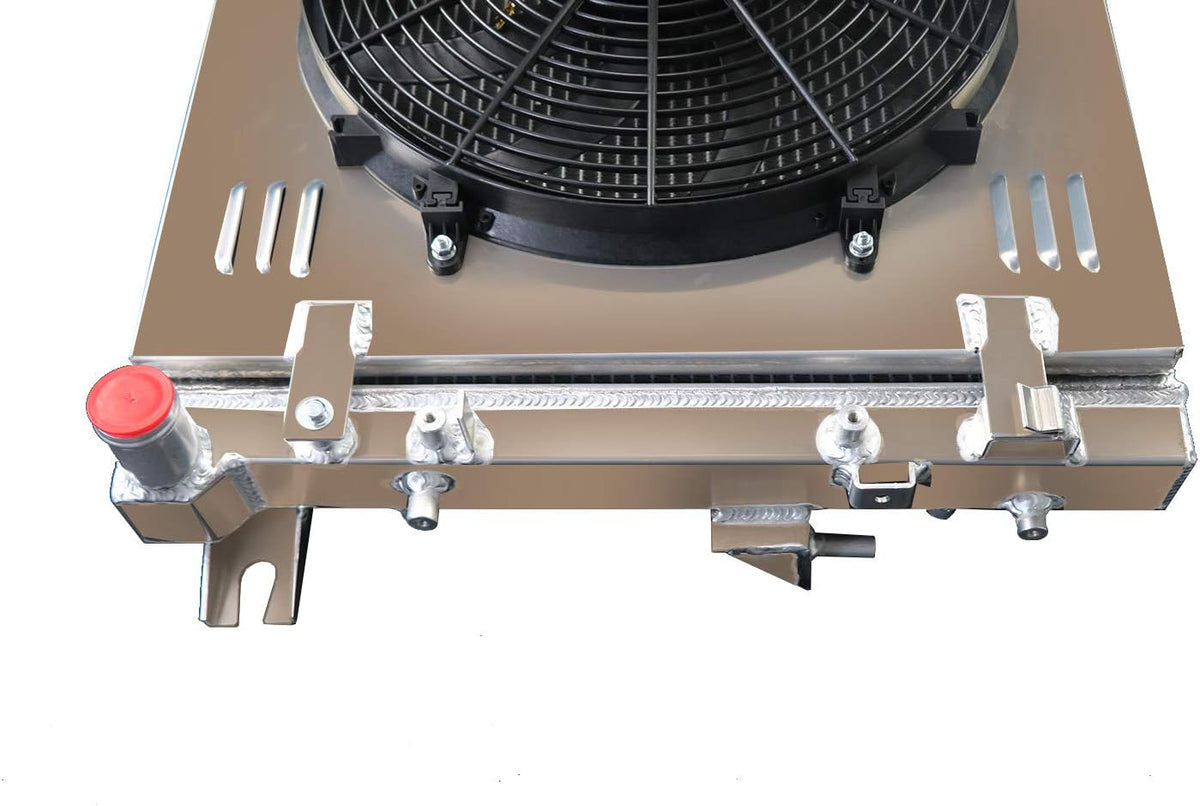

2 Row All Aluminum Radiator with Shroud Fan and Relay U702927

Radiator Size

Row: 2 Row Core

Material: Full Aluminium

Radiator Cap: included

Core and Tank: All Aluminum

Core Dimensions: 20.39'' x 21.06''

Overall Dimensions: 29.45 x 21.65'' x 6.18''

Inlet/Outlet: 1.5'' / 1.5''

Vehicle Fitment

For 2007-2015 Jeep Wrangler JK 3.6L 3.8L

2007-2011 Jeep Wrangler 3.8L

2012-2015 Jeep Wrangler 3.6L

Manufacturer Part Number

DPI 2957

OE 68143886AA

Partslink CH3010343

SBCSF CSF3592

SBQ Q2957

FANS:

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 16.050”

Thickness (in): 2.500”

Number of Blades: 10 blades

Maximum Fan RPM: 2,250 rpm

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.

Probe typically threads into radiator, water outlet or manifold.
